Our Products

Click on each product to get more information. You will need Adobe Reader installed on your computer in order to read the brochures.

Get Adobe Reader

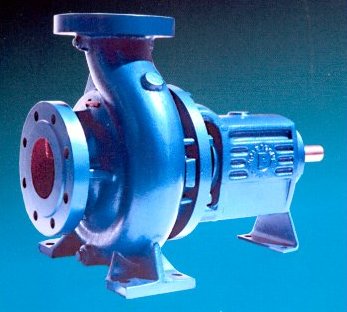

PA Series

The PA Series Pump is a single stage, back pull-out, end-suction centrifugal pump. It is available in 41 sizes, from 2x1.25-5 (50x32-130) to 12x10-16 (300x250-400) for heads up to 690 feet and flows to 5300 GPM.

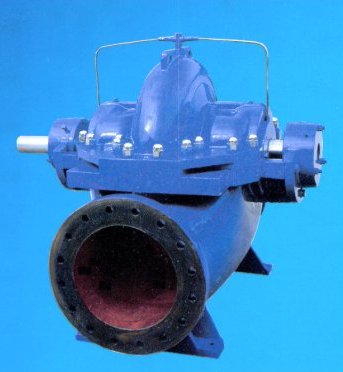

PS Series




The PS Series is a double suction, horizontal, split case centrifugal pump available in 46 sizes from 5x3-8 (125x80-210) to 36x36-31 (900x900-780) for heads up to 656 feet (200 m) and flows up to 80,000 GPM (18,000 m3/hr.). The PS Series has a maximum operating pressure of 435 PSI (30 bar) and a maximum operating temperature of 221o F (105o C).

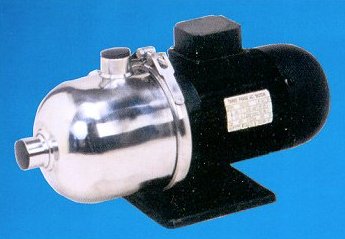

PM Series




The PM Series pumps are horizontal multistage stainless steel pumps available in four sizes up to 6 stages.  These pumps, used for clean water or liquids of which chemical and physical characteristics are similar to those of water, are widely used for high buildings, general industrial, circulation water supply systems, etc.

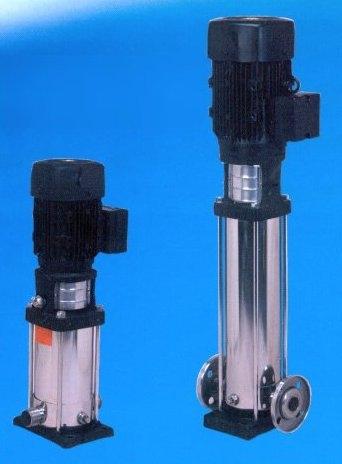

PV Series




The PV Series is a stainless steel vertical multistage pump available in eight sizes with up to 26 stages. These pumps are suitable for clean water or liquids. They are widely used for high buildings, plants, mining, city water supply systems and irrigation.
